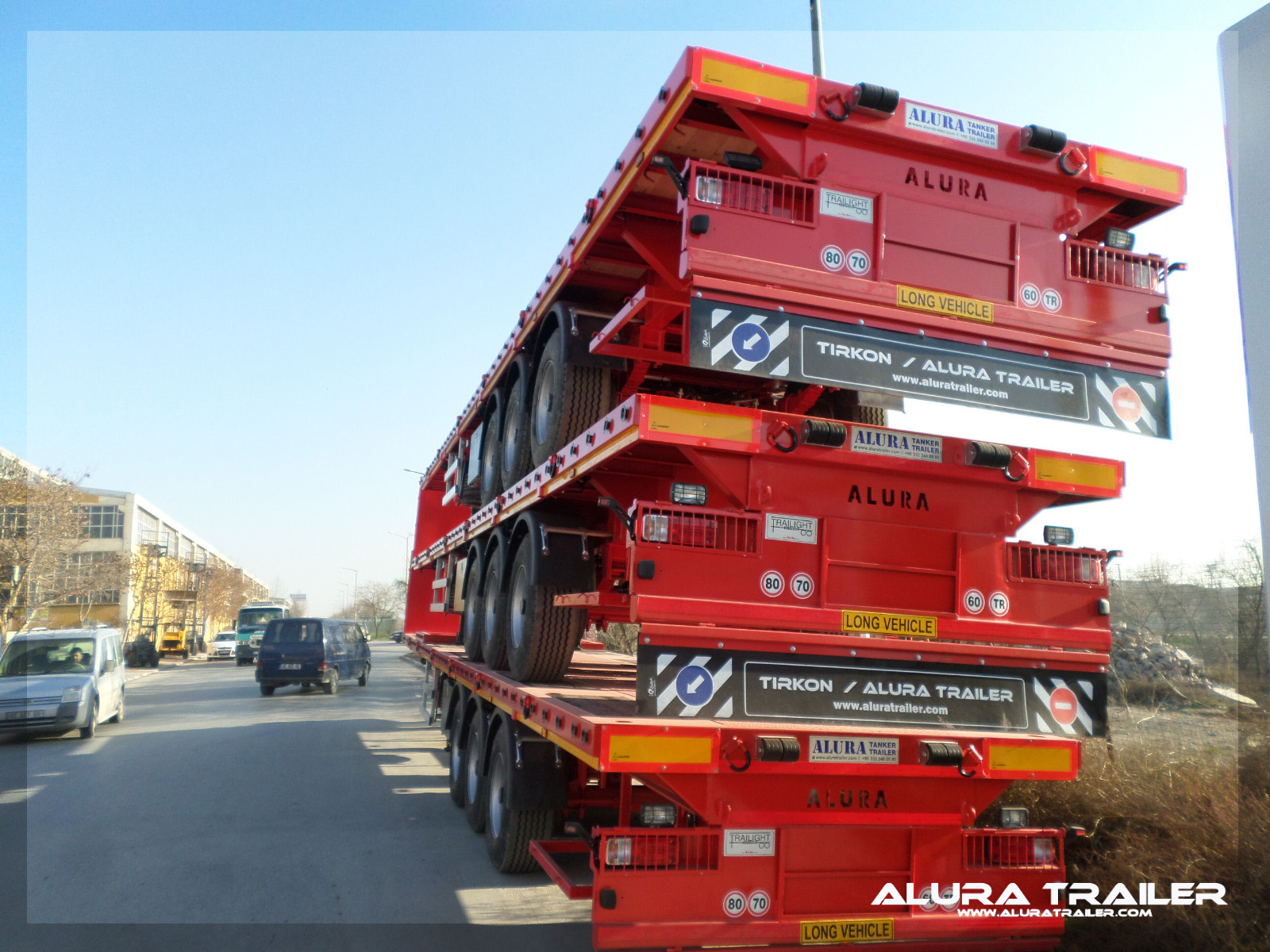

Dimensions of Flatbed Trailer:



Length : 12.200 mm

Width : 2.500 mm

Wheel base : 8.140 mm

Chassis : Its made from ST-52 and high resistant “I” cut chassis. 8 mm thickness chassis up and down 14 mm width for the 14 mm 120 mm. Plate for intensification from king pin to after legs 180X16 ST 52 steel and both of ends round shape

Axles : 3 axles with TUV certificate

Self steering system : 3rd axle has self steering system (Optional)

Suspension : Air suspension on the 3 axles

Air system : WABCO with EBS

Shock absorber : MAYSAN  brand and it has TUV certificate

Brake Adjusters : HALDEX  brand and it has TUV certificate

King-pin : OVRO brand 2” with its protection cover

Landing Legs :  24 ton double speed mechanic landing legs and it has TUV certificate. Air spring heavy duty type.

Twist locks : 12 units twist lock and they have TUV certificate. 12 units twist locks for 1 unit 40” container or 2X20” container or 1X20” container on the middle of container chassis. Twist locks’ places painted and pins will be galvanized to be seen at night.

Floor : Covered with 4/5 mm steel

Wheel and tyres : 385 65 R 22.5 Bridgestone  brand 7 units tyres and rims with TUV certificate

Electrical System : SABA Trailer Light Systems -  24 V electrical system with side lamps led every 2.5 Meter – It has ADR certificateConnectors 15 and 7 pin – 2 unit stop lamp by 7 functionally shall be covered with cage installed by bolts.2 units import plate illumination lampReflectors and velocity plates (with red and white crosses)Rear lamps have steel protection and it can be opened and closed. Rear side lamps will be placed top of bumper.All cables will be hold by cable-holder

Paint : Epoxy and paint with RAL code .......



Alura Trailer User's Manual

FacebookTwitterLinkedIn



To get detailed technical drawing about your requirement please contact with us

Optional extendable flatbed trailer with Tridec hydraulic steering system
